Tylogix's CCNA "What Were They Thinking"?
The aim of this page is to simply ask: What was Cisco thinking?

Well-Known Port Map by Webopedia.com









OSI vs TCP

Layer

Memory aid

Typical Problems

OSI Model

Payload

Data Type

TCP/IP Model

7

Advice

    Application

Application

Data

    smtp

    http

    ftp

    dns

    etc...

Application

6

People's

Presentation

5

Sales

Session

4

Trust

    QoS

Transport

Segment

    tcp

    Udp

    rtp

Transport

3

Not

    Routing Protocols

Network

Packet

    IP

Internet

2

Do

    Excessive Broadcast

    Encapsulation errors

Data Link

Frame

    HDLC (default)

    Ethernet

    Frame-Relay

    PPP

    ATM

    WAN

Network Interface

1

Please

    Collision Counts

    Clock Rate

    Jabber

Physical

Bits

    raw signal

    WAN



Class

From

To

n=network s=subnet (length may vary) h=hosts

Class A

0.0.0.0

127.255.255.255

0nnnnnnn.ssssshhh.hhhhhhhh.hhhhhhhh

Class B

128.0.0.0

191.255.255.255

10nnnnnn.nnnnnnnn. ssssshhh.hhhhhhhh

Class C

192.0.0.0

223.255.255.255

110nnnnn.nnnnnnnn.nnnnnnnn. ssssshhh

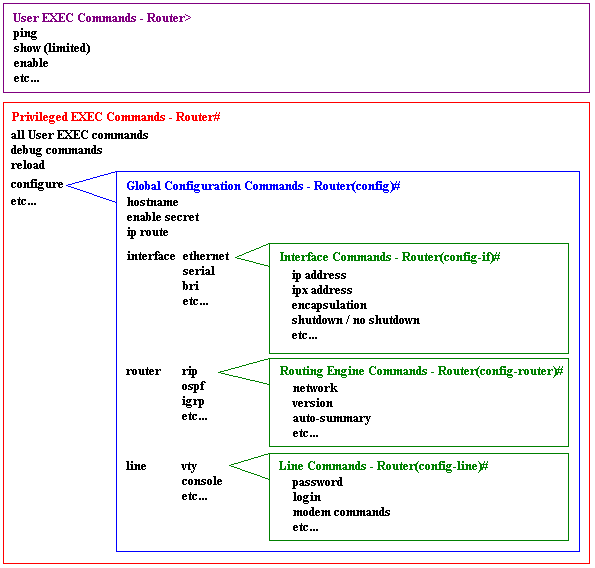

Cisco Prompts

Mode

Prompt

What you can do

User Exec

>

ping

show (limited)

enable

Privileged Exec

#

erase startup-config

reload

debug

Global Configuration

(config)#

Hostname

Enable secret

Ip route

Interface Configuration

(config-if)#

Ip address

Encapsulation

Shut / no shut

Router Configuration

(config-router)#

Network

Version

Auto-summary

Line Configuration

(config-line)#

Password

Login

http://www.cisco.com/images/IOSTREE.gif
